Darkglass

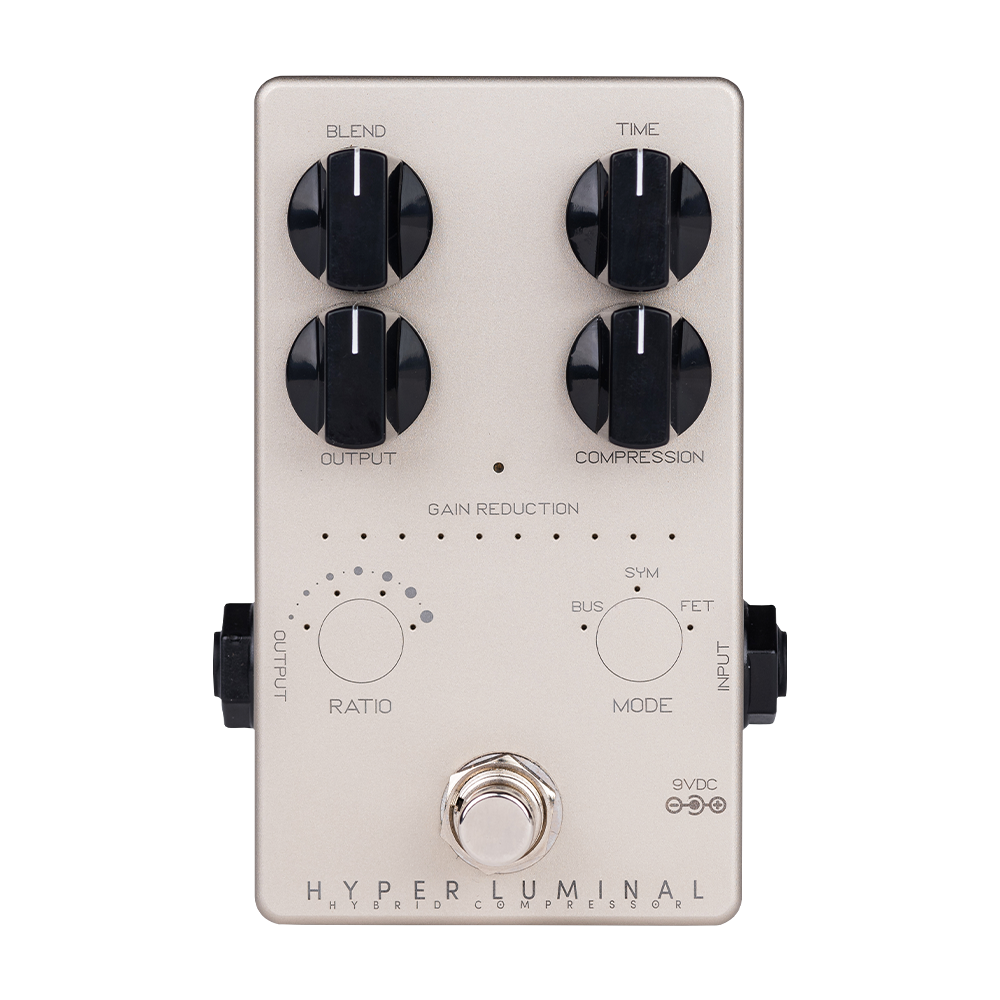

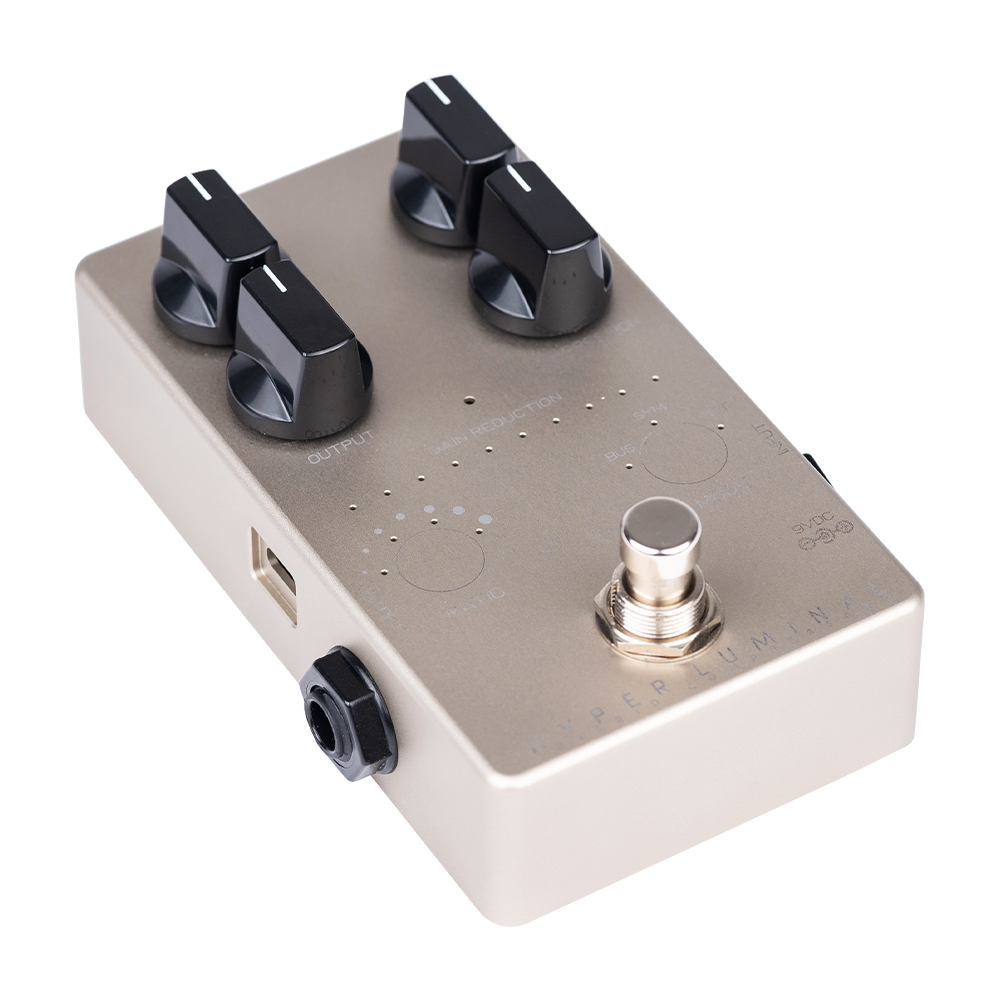

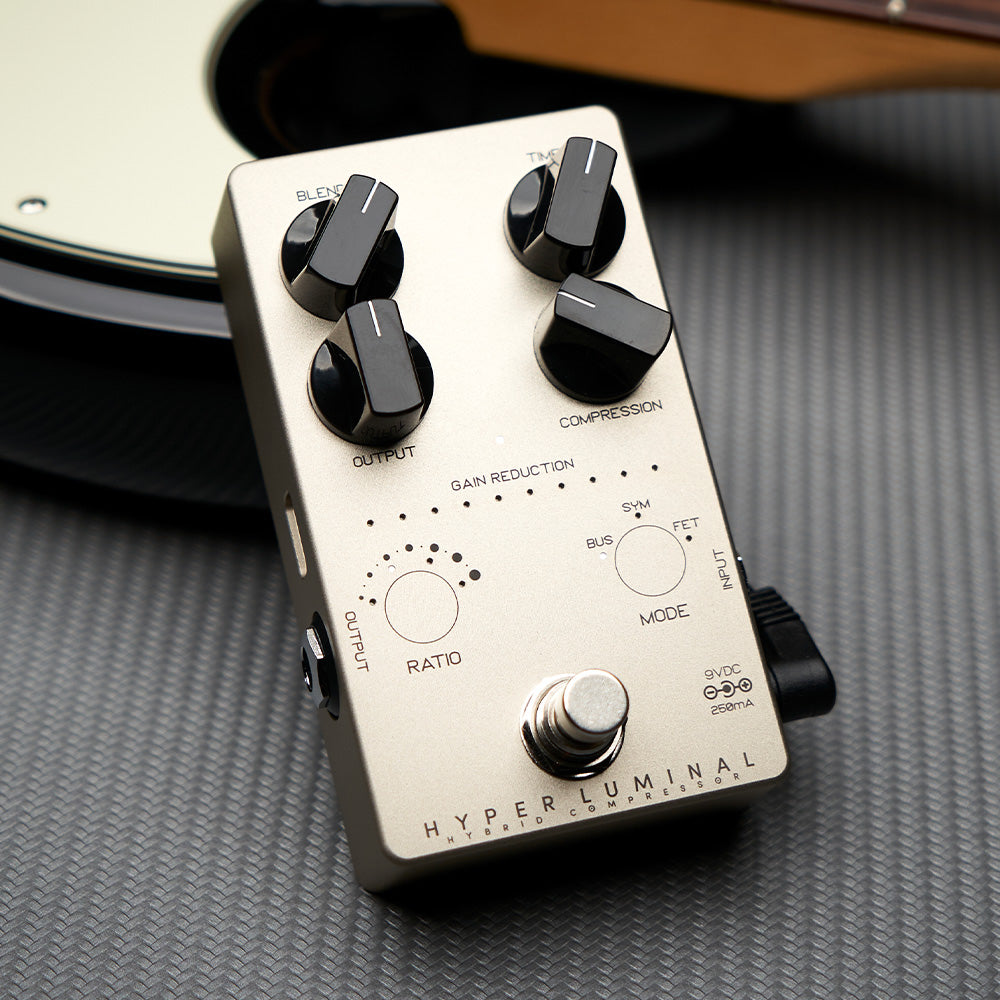

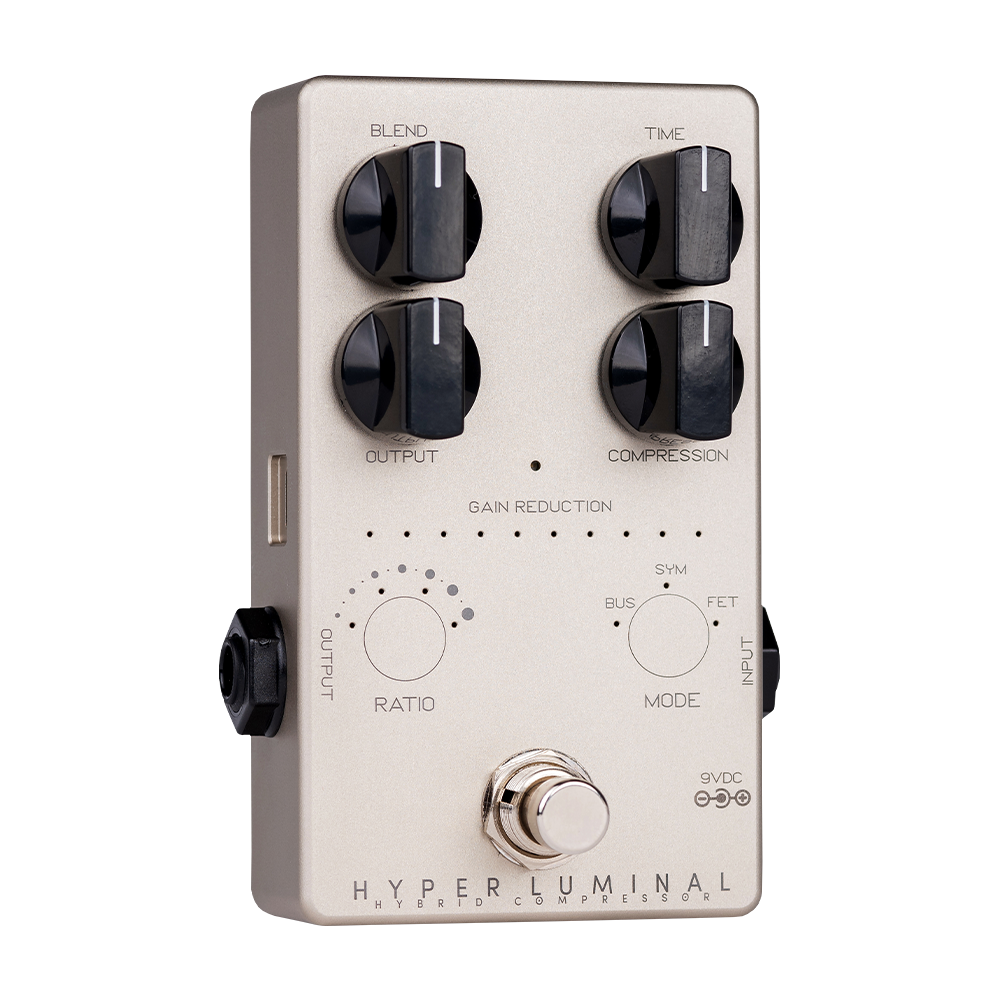

Hyper Luminal Compressor

Hyper Luminal Compressor

$349.99 USD
$349.99 USD
Sale Sold out
Shipping calculated at checkout.
  • Blend control to mix the clean and effected signals
  • Time control to adjust both the attack and release of the compression
  • Compression knob that adjusts both the overall amount of compression and the internal makeup gain
  • Three compression modes - BUS, FET, and SYM
  • Micro USB B connector to connect to PC/Mac for Darkglass Suite software
  • Limited edition black finish
View full details

Analog Soul. Digital Precision.

The Hyper Luminal Compressor features the first hybrid design in a compressor pedal: an analog VCA controlled by a digital side-chain allowed us to capture and include the characters of some of the most legendary compressors in history while keeping the signal path completely analog.

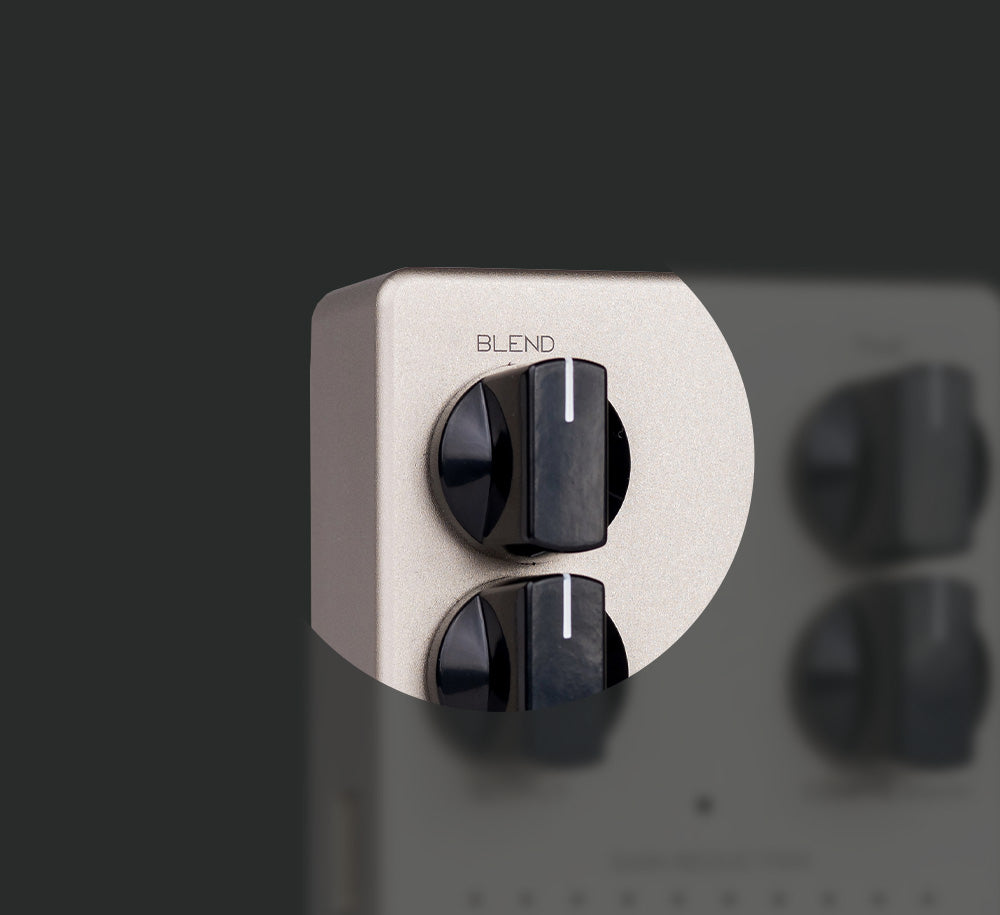

  • Darkglass-Hyper-Luminal-Card-1

    BLEND

    Mixes the clean and effected signals. Unlike our distortions, it is placed before the Output control. So the Hyper Luminal can also be used as a transparent booster with this control at minimum.

  • Darkglass-Hyper-Luminal-Card-2_ccb789c9-25ca-410c-b418-5f4aeb05be64

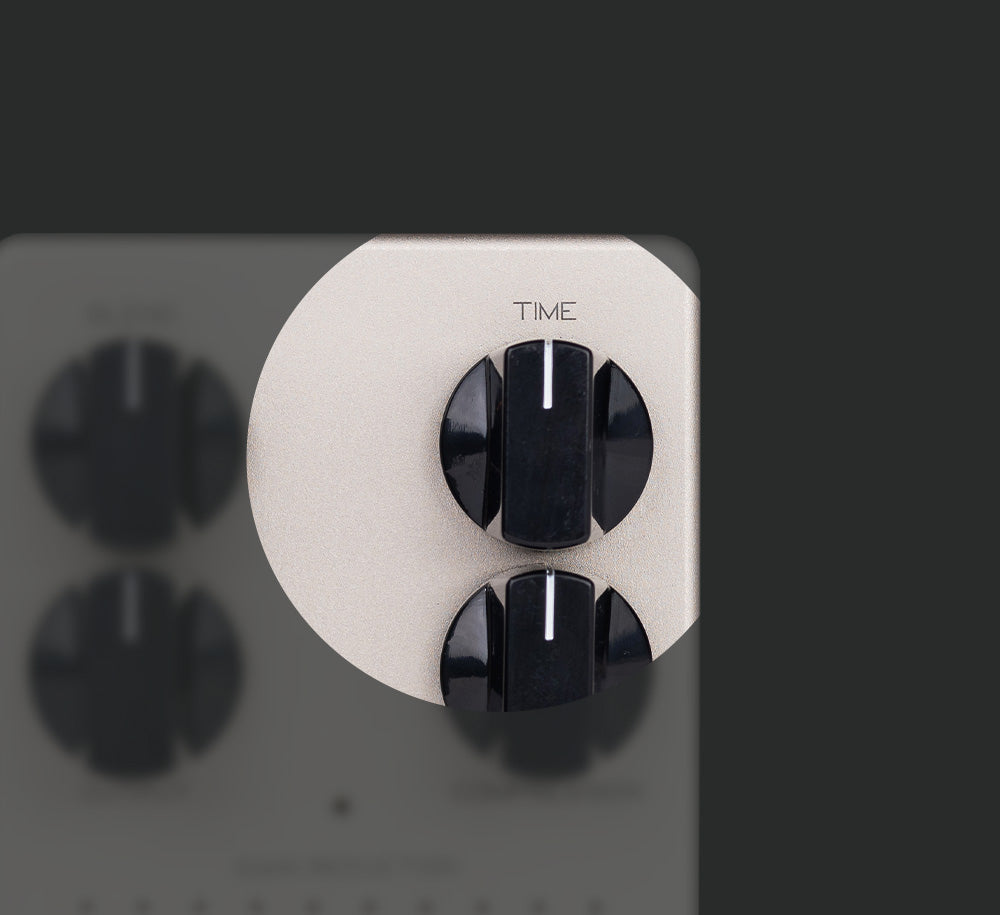

    Time

    Sets the time constants (Attack and Release). You can use the Darkglass Suite to fine tune and custom map the time constants, you can also assign different behaviours for each Mode.

  • Darkglass-Hyper-Luminal-Card-3_c3500b35-a575-47c0-bc0d-a8810363d4b9

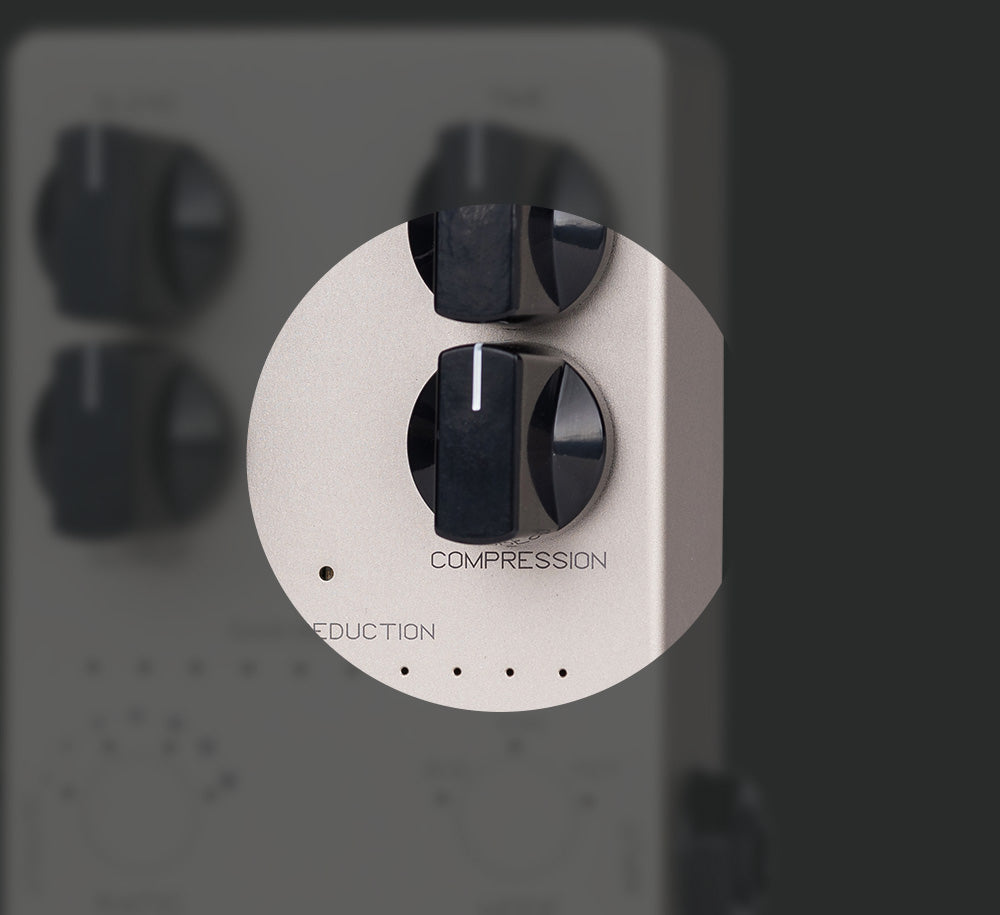

    Compression

    Sets the overall amount of compression. This control also affects the internal makeup gain.

1 3
Video thumbnail

Specs

  • Blend

    Mixes the clean and effected signals. Unlike our distortions, it is placed before the Output control. So the Hyper Luminal can also be used as a transparent booster with this control at minimum.

  • Time

    Sets the time constants (Attack and Release). You can use the Darkglass Suite to fine tune and custom map the time constants, you can also assign different behaviours for each Mode.

  • Output

    Sets the overall output volume of the unit.

  • Compression

    Sets the overall amount of compression. This control also affects the internal makeup gain.

  • Ratio

    Adjusts the amount of compression.

  • Mode

    Selects the unit’s Mode (BUS, FET, or SYM).

  • Dimensions

    Width: 75 mm / 3″
    Length: 111 mm/ 4¼″
    Height: 43 mm / 1¾″
    Weight: 250 g / 0.55 lb

  • Warning

    The Hyper Luminal has a current draw of 250mA. Only use a regulated 9V DC adapter with a center-negative plug.

    Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.

    All product names are trademarks of their respective owners, which are in no way associated or affiliated with Darkglass Electronics.

1 18

Input & Outputs

  • Output

    Connect from the ¼” Output jack to the input of your amplifier or another effects pedal.

  • Input

    Connect your instrument or output from your pedal board to the ¼” mono jack.

  • USB

    A USB C connector allows you to connect the pedal to PC/Mac to set Time settings, parameters, and future firmware upgrades via the Darkglass Suite.

  • 9V DC

    Only use a regulated 9V DC adapter with a center-negative plug.

1 16

Darkglass Suite

By using the desktop version of the Darkglass Suite you can adjust the time and attack settings of each mode, the side chain parallel high pass filter, the mode of the release and attack settings and enable or disable the “guitar” mode.

Darkglass-Hyper-Luminal-Image-Technical-Details

Touch Sensors

Ratio

Adjust the amount of compression ratio.

  • BUS: 2:1, 4:1, 10:1, 15:1
  • FET: 2:1, 4:1, 8:1, 20:1, “ALL IN”
  • SYM: Based on different settings of the Super Symmetry · 115 GeV Compressor.

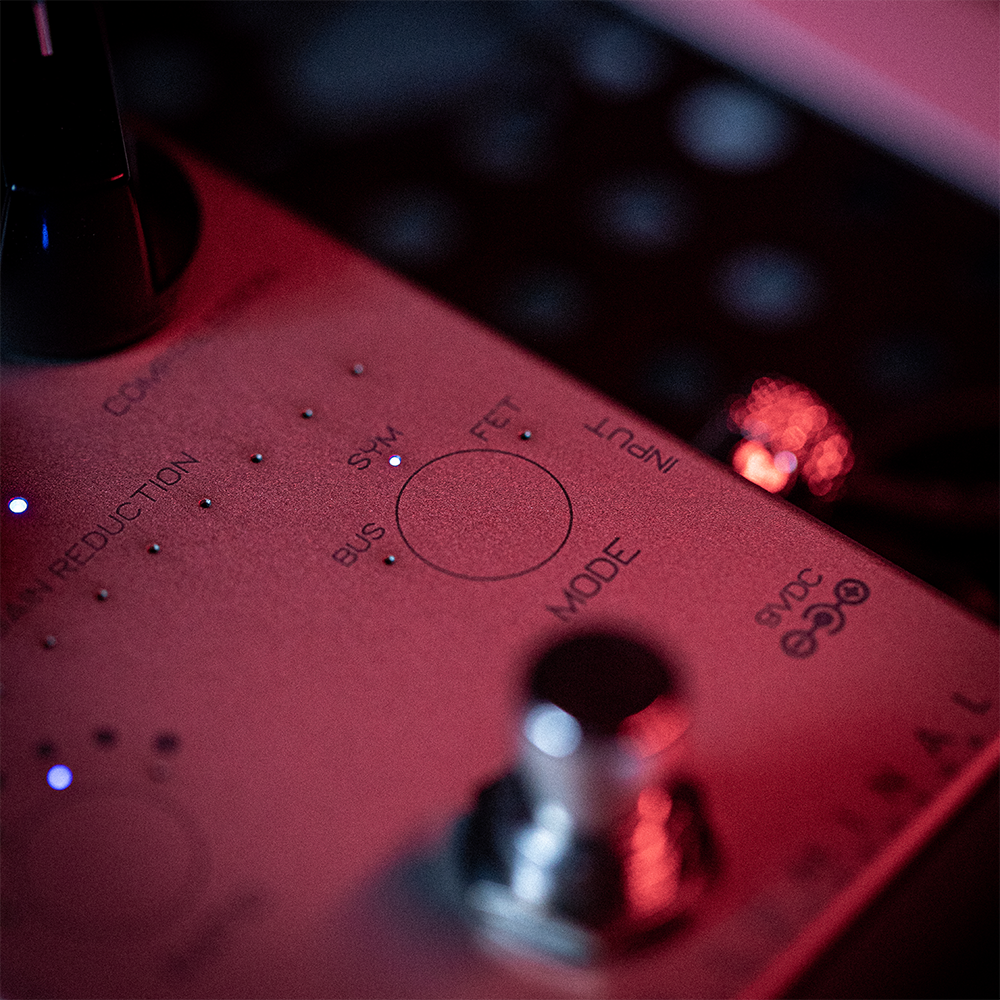

Mode

Selects between three different models:

  • BUS: Modeled after the Solid State Logic ® Bus compressor.
  • FET: Inspired by the legendary 1176®.
  • SYM: Our discontinued Super Symmetry · 115 GeV Compressor.

SUPPORT + DOCUMENTATION

SUPPORTREGISTER YOUR PRODUCT

DISCLAIMER

In the interest of continuous improvement, specifications are subject to change without notice. If you have any questions, please don’t hesitate to contact us at www.darkglass.com

The manufacturer claims that the above product fulfills the requirements as set by EN55013, EN55020, EN60555-2, EN60555-3, RoHS, WEEE.
