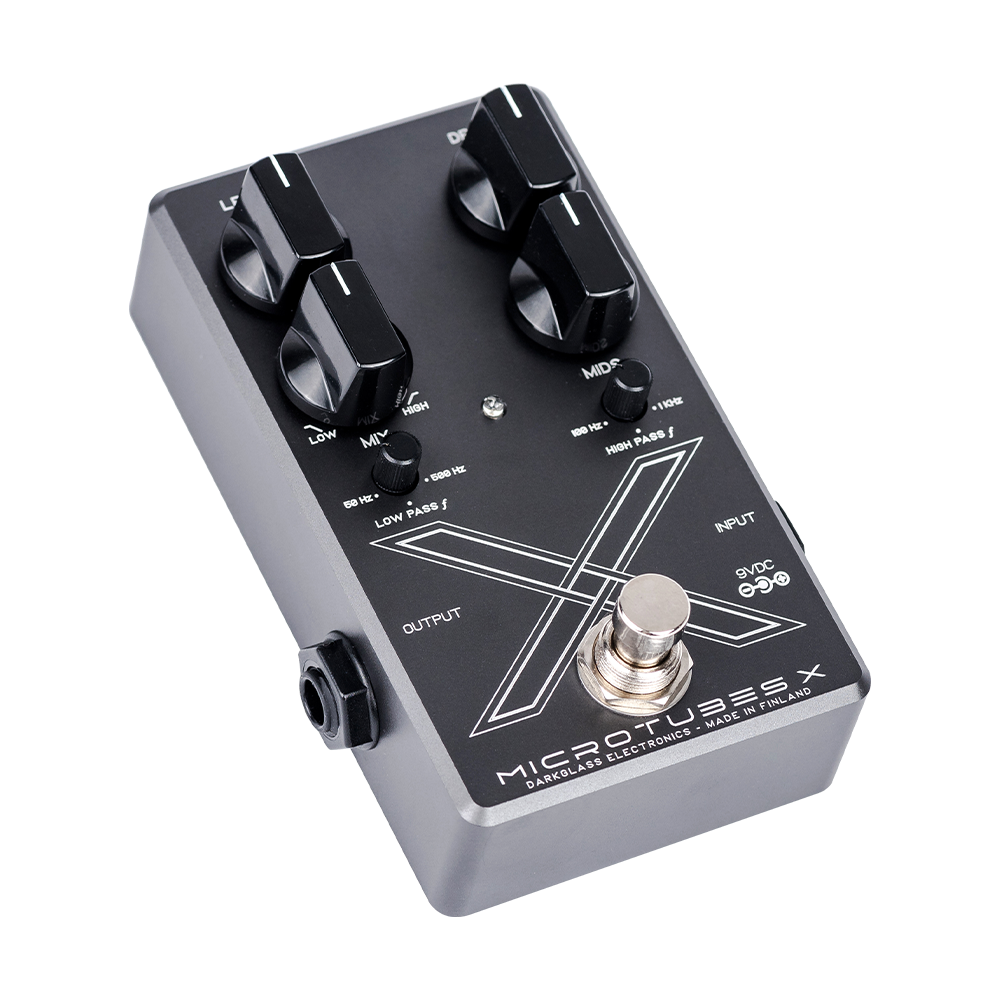

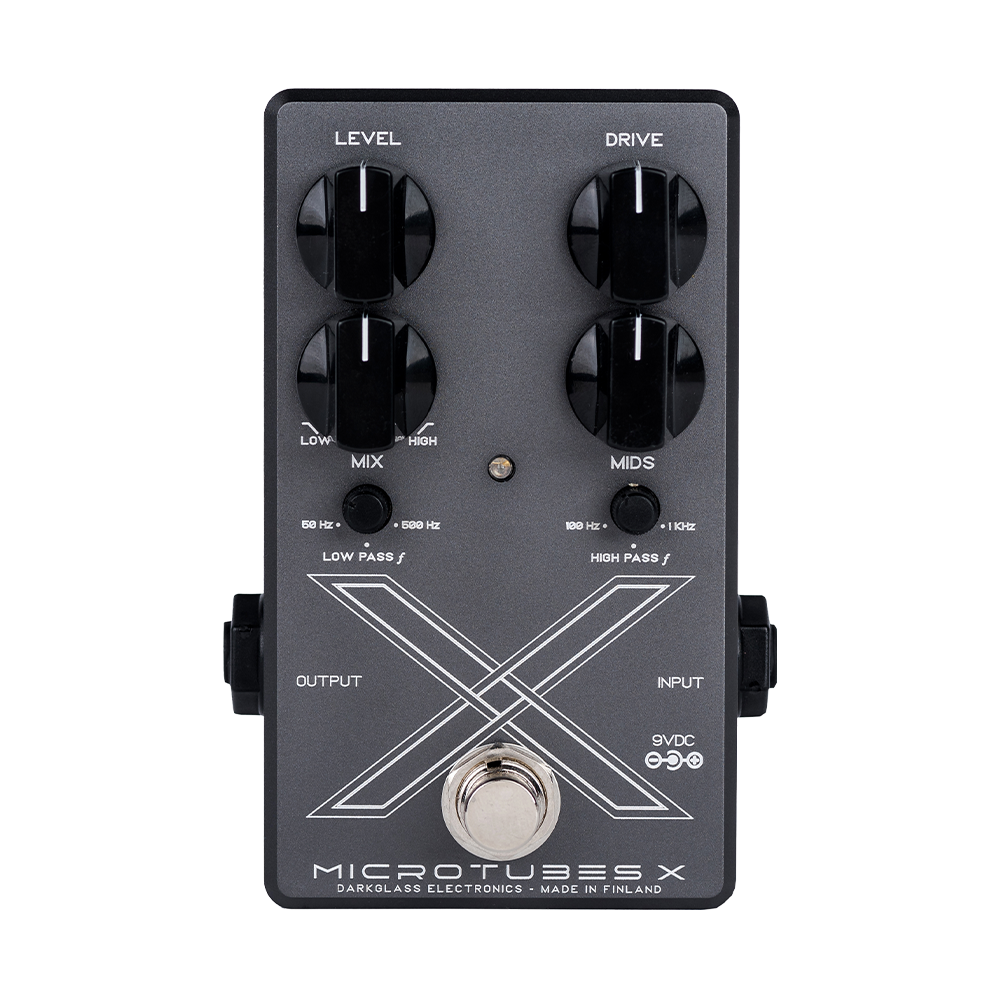

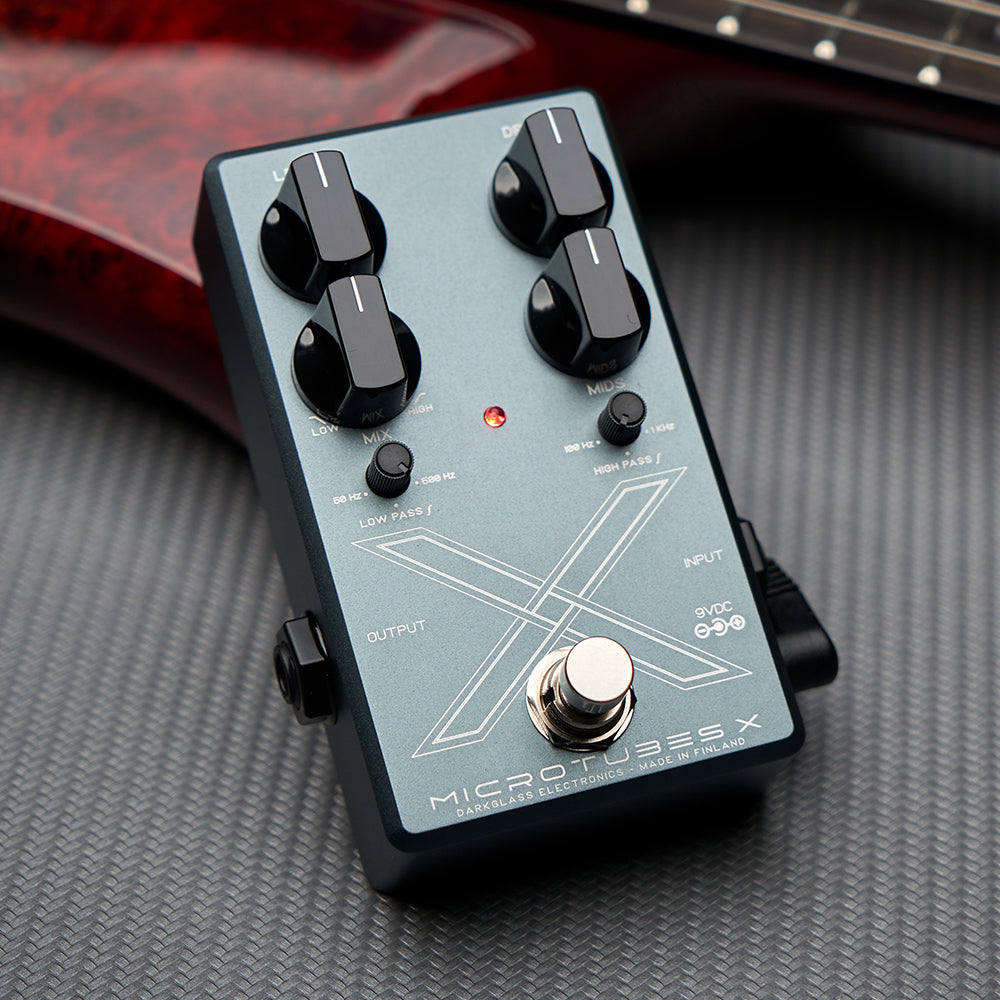

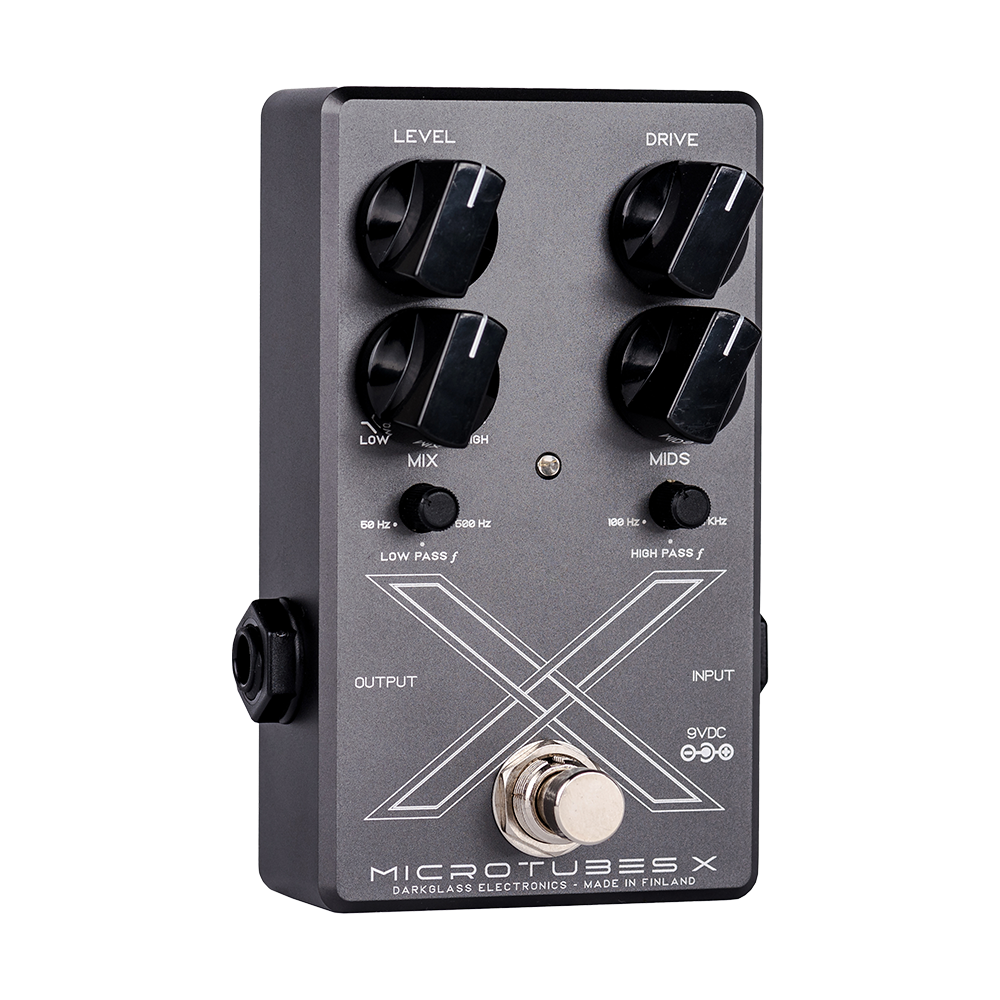

Microtubes X

Core Series



An intuitive format that contains brutality and clarity at the same time is what the B3K delivers. A defined and powerful overdrive, with a simple layout, it sets no boundaries or rules to unleashing the desired tone.

Specs

High-pass frequency

Controls the cutoff frequency to be distorted, ranging from 100Hz (for thicker, fuzzier saturation) or 1kHz for ultra-sharp definition.



Low-pass frequency

Controls the cutoff frequency to be mixed back to the high-pass side. Ranging from 50Hz (for only sub-bass) and 500Hz to preserve some clean mids.



Level

Sets the overall output volume of the unit.



Drive

Sets the amount of distortion for the high pass side.



Mix

Sets the blend between low-pass and high-pass signals.

Mids

Active mid control placed after the Mix control. +-12dB @ 500Hz.



Output

Connect from the ¼” Output jack to the input of your amplifier or another effects pedal.



Input

Connect your instrument or output from your pedal board to the ¼” mono jack.



9V DC

Only use a regulated 9V DC adapter with a center-negative plug.

Dimensions

Width: 75 mm / 3″
Length: 111 mm/ 4¼″
Height: 43 mm / 1¾″
Weight: 250 g / 0.55 lb



Warning

The Microtubes X has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug.

Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.

Disclaimer

In the interest of continuous improvement, specifications are subject to change without notice. If you have any questions, please don’t hesitate to contact us at www.darkglass.com

The manufacturer claims that the above product fulfills the requirements as set by EN55013, EN55020, EN60555-2, EN60555-3, RoHS, WEEE.
