Spot Series

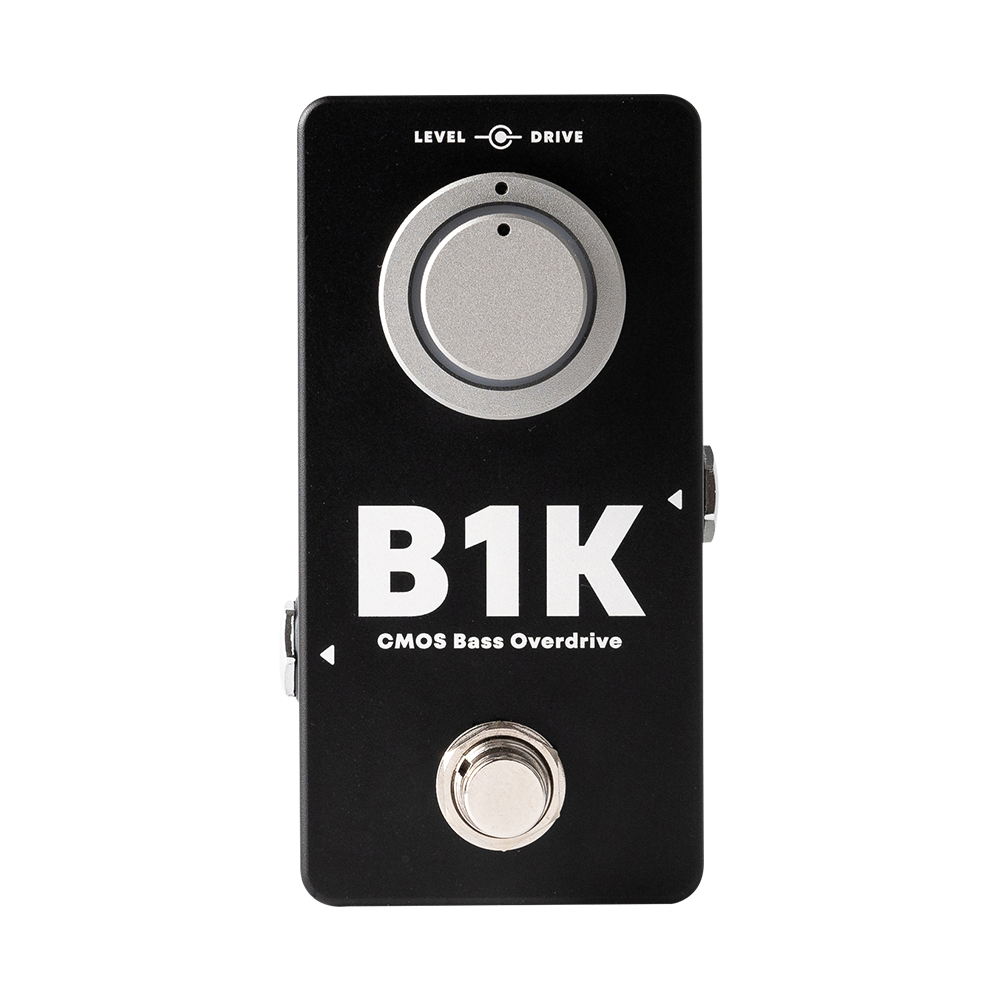

The Microtubes B1K is a phenomenal tribute to one of our most legendary distortion circuits in a compact and intuitive format. We are proud to introduce our Microtubes B1K distortion pedal, the first of its kind from an all-new lineup.
Sets the volume of the overdriven signal.
Sets the amount of saturation in the overdriven signal.
Width: 50 mm /2″
Length: 45 mm/ 1¾″
Height: 100 mm / 4″
Weight: 205 g / 0.45 lb
The Microtubes B1K has a current draw of 30 mA. Only use a regulated 9V DC adapter with a center-negative plug.
Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
Mixes the clean input signal with the overdriven signal.
The clean signal is fixed at unity gain, while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.
Turn clockwise to blend in the clean signal.
Controls the high-frequency content of the sound. A variable low pass filter from 3 kHz to 8 kHz. Turn CCW for a brighter sound.
Provides a low-end boost to massively thicken your sound when engaged.
Gives a subtle 6 dB boost from 300 Hz to 1 kHz to help you cut through the mix.
In the interest of continuous improvement, specifications are subject to change without notice. If you have any questions, please don’t hesitate to contact us at www.darkglass.com
The manufacturer claims that the above product fulfills the requirements as set by EN55013, EN55020, EN60555-2, EN60555-3, RoHS, WEEE.
