Luminal Booster Ultra

Ultra Series

☉︎

Combining the rich tone of the Harmonic Booster with the precision of an adjustable frequency range parallel compression, this pedal gives you unmatched control. With a 6-band EQ, gain reduction meter, and the option to load 7 custom Impulse Responses via USB, it delivers ultimate tonal flexibility for bass players of any genre. Pure, powerful, and precise—your clean tone, perfected.

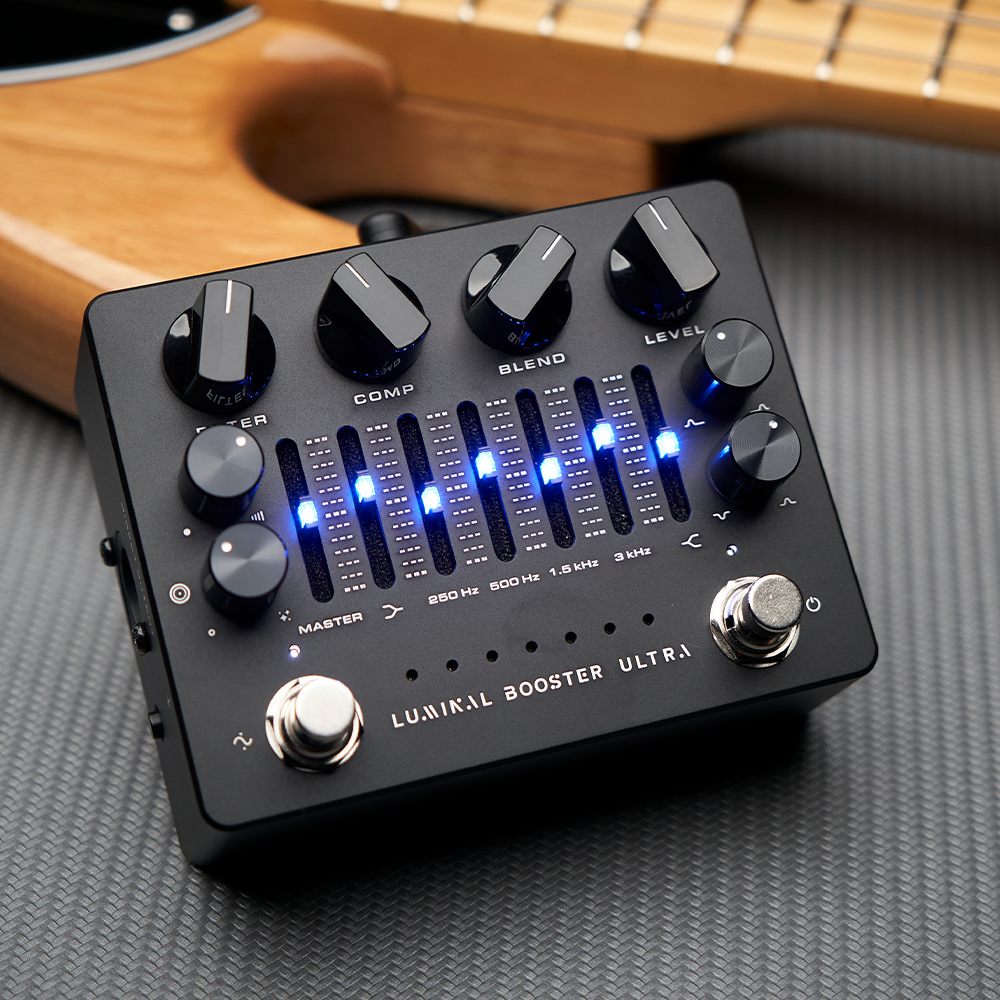

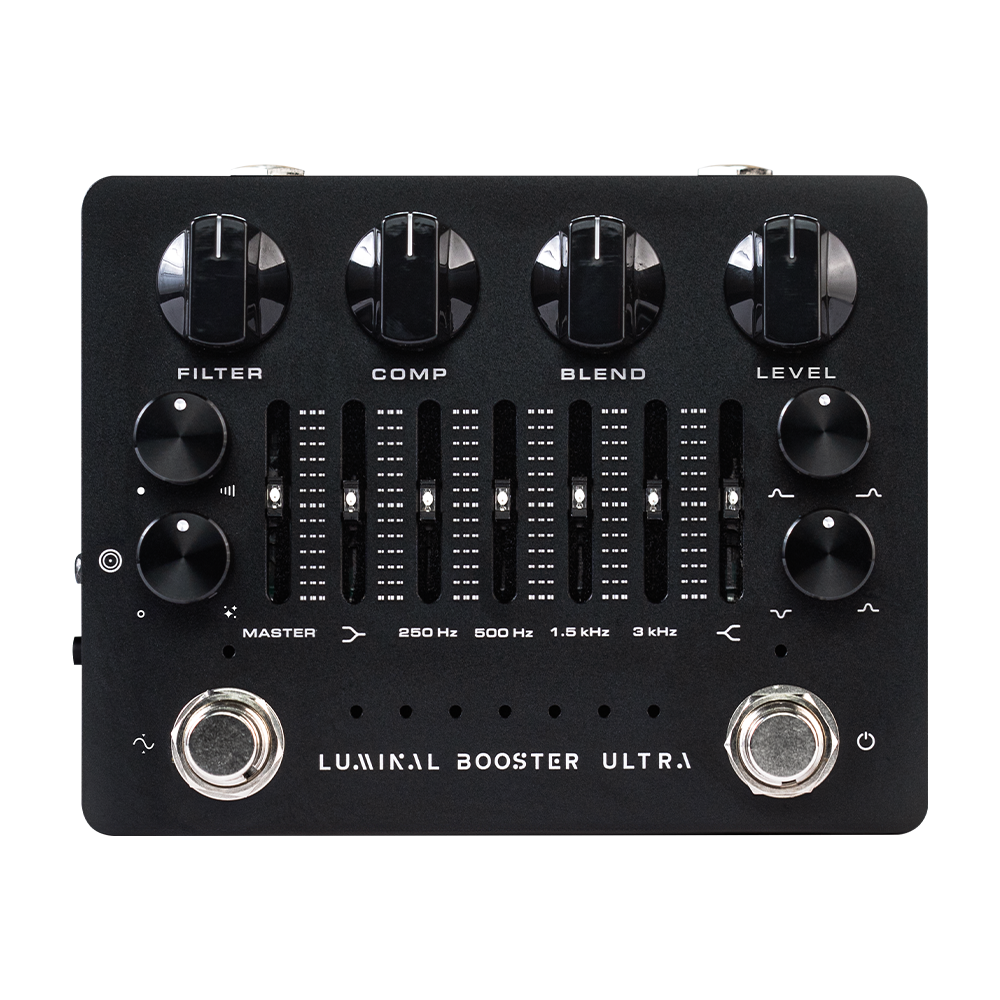

Front Features

Filter

Adjustable lowpass filter for the compressed signal

Blend

Blends between clean and compressed signal

Comp

Adjusts the amount of compression applied

Level

Adjusts the level of the compressor after the blend control

Boost

+-20dB boost or cut

Character

Allows blending in the perfect amount of the tone-shaping circuitry. Press to select between 7 IRs.



Mid gain

+-20dB @ the frequency selected by “Mid Frequency”.

Mid Frequency

Mid frequency from 250Hz to 2.5kHz.

Master

+-12 dB. Sets the overall volume of the unit.

Bass

Low shelf +-13dB @ 80 Hz

Mid bands

+-13dB @ 250 Hz, 500 Hz, 1.5 kHz, 3 kHz

Treble

High shelf +-13dB @ 5 kHz

Dimensions

Width: 125 mm / 5″
Length: 96 mm/ 3¾″
Height: 57 mm / 2¼″
Weight: 430 g / 0.95 lb



Warning

When the pedal is on bypass the master volume does not affect the headphone volume. In this case the total volume is adjustable in Darkglass Suite. With sensitive headphones, the bypass volume can be very loud if not adjusted.

The Luminal Booster Ultra has a current draw of 200mA. Only use a regulated 9V DC adapter with a center-negative plug.

Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.

Darkglass Suite



Utilizing the desktop version of the Darkglass Suite allows you to load one of the available impulses responses of our library or add you custom / third party impulses to use with your pedal. In addition you can control the headphones level output.

Cabsims

  • Analog Cabinet
  • Black and White 410
  • Cali 212
  • Cali 410 NEO
  • Cali Combo 212
  • Dave 410
  • DG112N
  • DG212N
  • DG410N
  • DG412ES
  • DG810ES
  • Fashionista 412
  • Forrester 810
  • Fruity 115
  • Fruity 212
  • Fruity 410
  • Fruity 810
  • Garden118
  • Garden 410
  • London 412
  • London 412 Vintage
  • Modern 212
  • Modern 412
  • Modern 115 Powerplant
  • Modern 210 Powerplant

Cabsims

  • Modern 410 Powerplant
  • Modern 810 Powerplant
  • Mountainino 610
  • Nolly 810
  • Panzer 412
  • Peggy 115
  • Peggy 210
  • Peggy 410
  • Peggy 810
  • Peggy 810 Vintage
  • Snakeskin
  • Stockman 212
  • Stockman 410
  • Stockman 810
  • Swirl 115
  • Swirl 410
  • Swirl 810
  • Topper

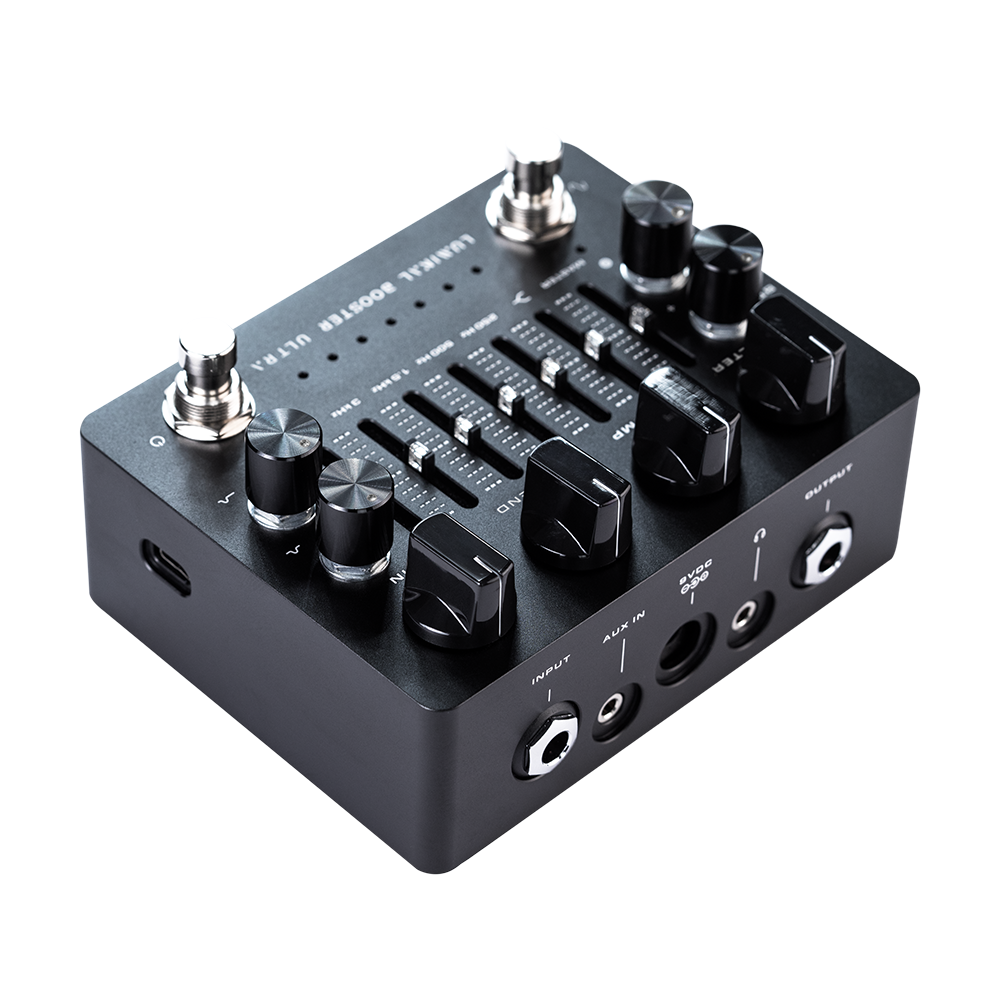

Input & Outputs

Input

Connect your instrument or output from your pedal board to the ¼” mono jack.



Aux In

This 3.5mm stereo input allows you to practice with backing tracks from e.g. your smartphone or laptop. Auxiliary input can only be used with the headphone output.

The pedal does not control the level, it must be set from your audio source. Remember to always first set the level low before connecting anything to the aux in!.



Headphone Output

Luminal Booster Ultra has an internal stereo headphone amplifier capable of driving a minimum load of 16 ohms from the 3.5mm stereo jack. Use the Master volume control to adjust the level.

9V DC

Only use a regulated 9V DC adapter with a center-negative plug



Output

Connect from the ¼” Output jack to the input of your amplifier or another effects pedal.

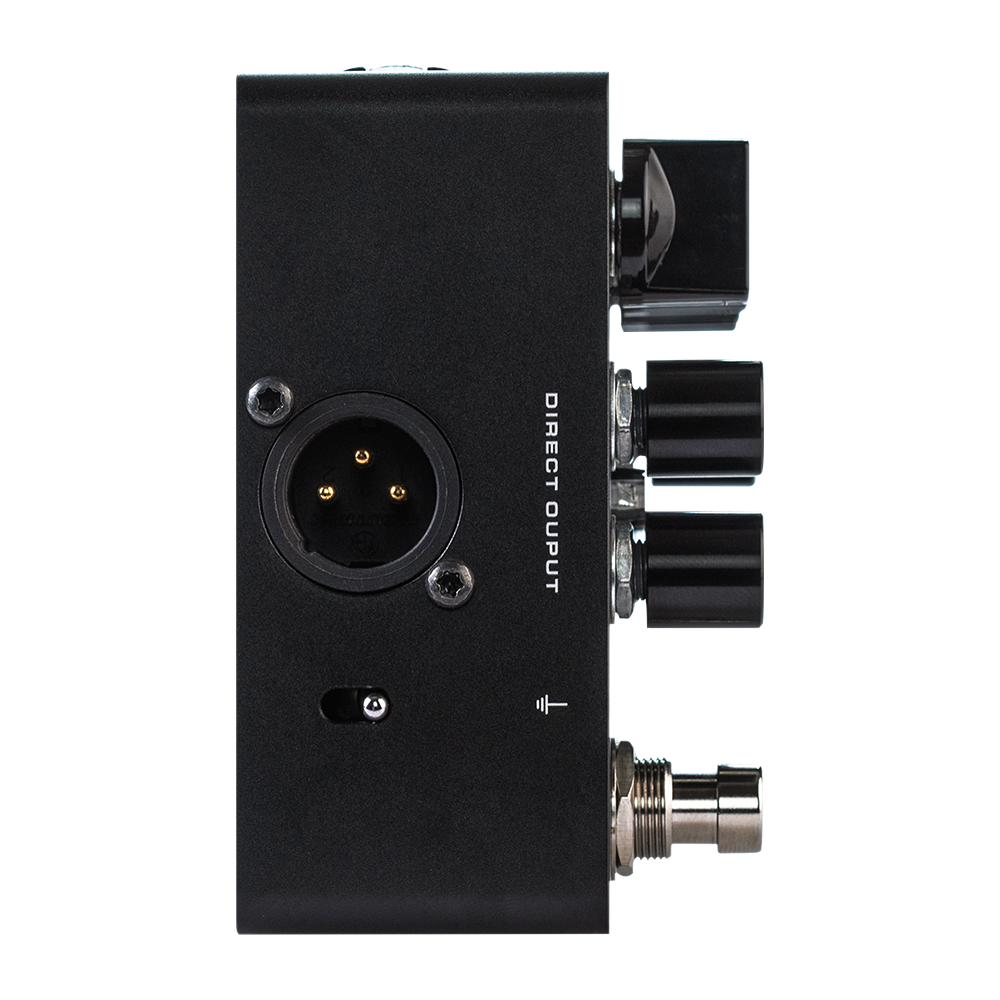

Direct Output

Balanced XLR output for connecting the pedal to a microphone preamp, PA system etc.



Ground lift

Disconnects the signal ground on the Direct Output to break any ground loops. Set this switch to either position that has less noise. The switch does not affect the ¼” output.

Cab Sim

Select between 7 Cab Sim slots for the XLR can be accessed by pushing on the Character knob.

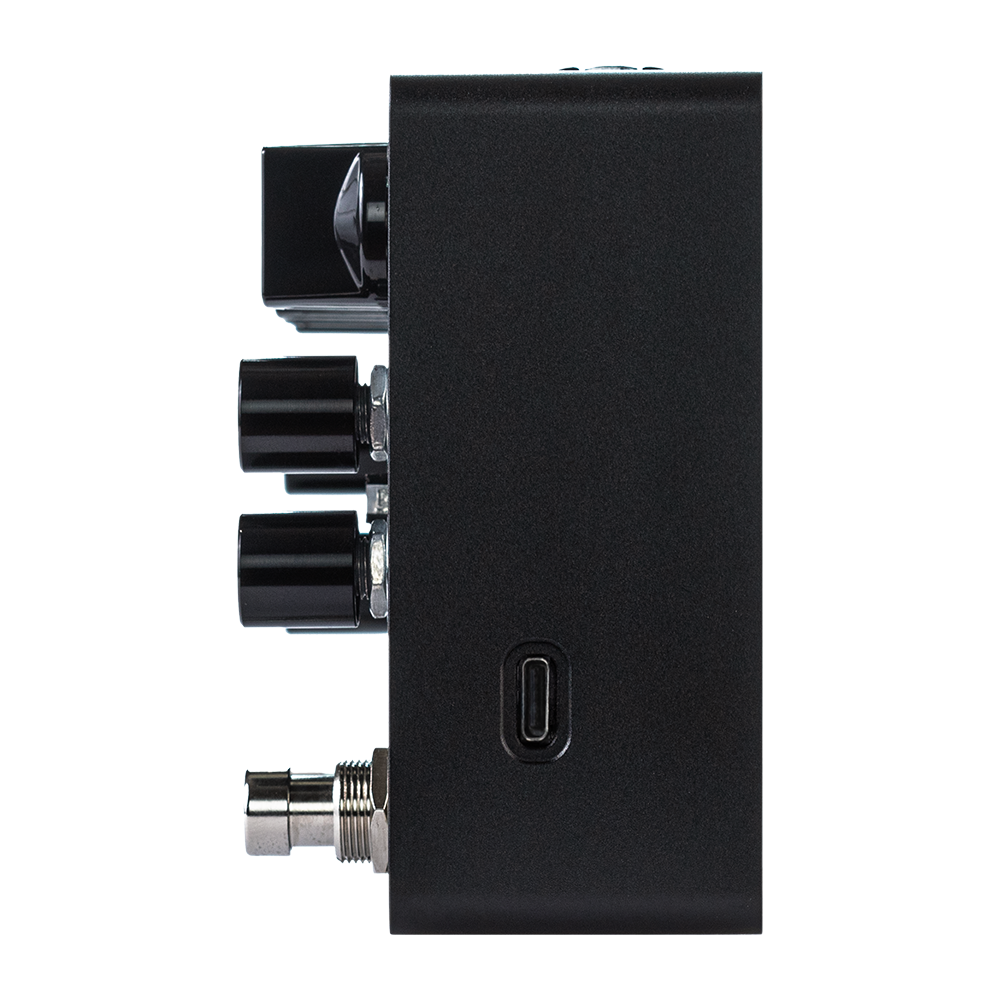

USB

A USB C connector allows you to connect the pedal to PC/Mac to load cabinet simulation impulse responses to the pedal and control various other settings.

Disclaimer

In the interest of continuous improvement, specifications are subject to change without notice. If you have any questions, please don’t hesitate to contact us at www.darkglass.com

The manufacturer claims that the above product fulfills the requirements as set by EN55013, EN55020, EN60555-2, EN60555-3, RoHS, WEEE.
