Darkglass

Vintage Deluxe V3

Vintage Deluxe V3

£302.00 GBP
£302.00 GBP
Sale Sold out
Shipping calculated at checkout.
  • The natural dynamics and organic compression of vintage tube amps and tape machines
  • 3rd-generation enhancements include low-mid and high-mid frequency selection switches
  • Level control sets the volume of the overdrive signal
  • Drive control sets the amount of saturation in the overdrive signal
  • Grunt switch lets you select the amount of LF content to be saturated
  • Attack switch lets you select the amount of HF content to be saturated
  • Blend control mixes the clean input and effected overdrive signals
  • Parallel Output pass-through for easy parallel processing
  • Direct Output is a balanced version of 1/4" output for feeding a PA or studio console
  • Power requirements: regulated 9-volt DC adapter with center-negative plug (sold separately)
View full details

Classic tone, refined.

The upgraded version of the Vintage Deluxe features the warm, tube-like tones of the Microtubes Vintage and adds a 4-band active EQ, Low and High mid frequency switch, parallel output and balanced line driver. It delivers the natural dynamic response and organic compression of classic tube amps and tape machines, fitting four decades of legendary tones into a package that will fit in your gig bag.

Video thumbnail

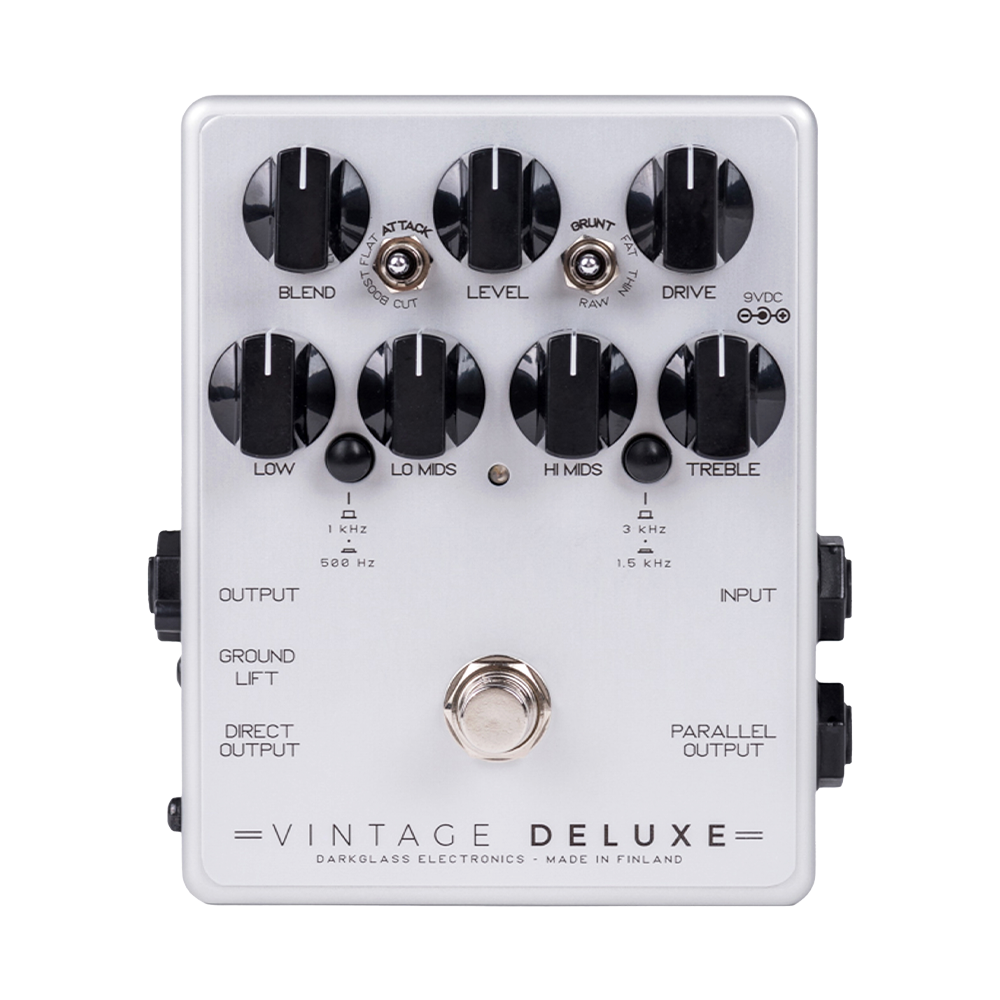

Front Features

  • Blend

    Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.

  • Level

    Sets the volume of the overdriven signal.

  • Drive

    Sets the amount of saturation in the overdriven signal.

  • Attack Switch

    Sets the amount of treble content to saturate: The “Boost” setting emphasizes the treble content extra clarity and presence.

    The “Flat” position leaves this register untouched while the “Cut” position will reduce the amount of high frequencies being saturated.

    This new addition helps to keep the treble portion of the signal under control, specially useful when playing with new strings and/or cabinets with tweeters!

  • Grunt Switch

    Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage.

  • Low

    +-12dB @ 100Hz

  • Low Mids Switch

    This switch change the center frequency of the Low Mids from 1kHz to 500Hz.

  • Low Mids

    +-12dB @ 500Hz

  • Hi Mids

    +-12dB @ 1.5kHz

  • Hi Mids Switch

    This switch change the center frequency of the Hi Mids from 3kHz to 1.5kHz.

  • Treble

    +-12dB @ 5kHz

  • Dimensions

    Width: 94 mm / 3¾″
    Length: 120 mm/ 4¾″
    Height: 46 mm / 1¾″
    Weight: 320 g / 0.7 lb

  • Warning

    The Vintage Deluxe has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug.

    Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.

1 13

Inputs & Outputs

  • Output

    Connect from the ¼” Output jack to the input of your amplifier or another effects pedal.

  • Ground Lift

    Use this control to lift the ground of the XLR output. If you are experiencing ground noise in your DI signal, try changing this control.

  • Direct Output

    A balanced version of the ¼” output, useful for running into PA’s or studio mixing consoles.

  • Input

    Connect your instrument or output from your pedal board to the ¼” mono jack.

  • 9V DC

    Only use a regulated 9V DC adapter with a center-negative plug.

  • Parallel Output

    A passthrough for your input signal, useful for parallel processing.

1 8

SUPPORT + DOCUMENTATION

SUPPORTREGISTER YOUR PRODUCT

DISCLAIMER

In the interest of continuous improvement, specifications are subject to change without notice. If you have any questions, please don’t hesitate to contact us at www.darkglass.com

The manufacturer claims that the above product fulfills the requirements as set by EN55013, EN55020, EN60555-2, EN60555-3, RoHS, WEEE.
