Darkglass

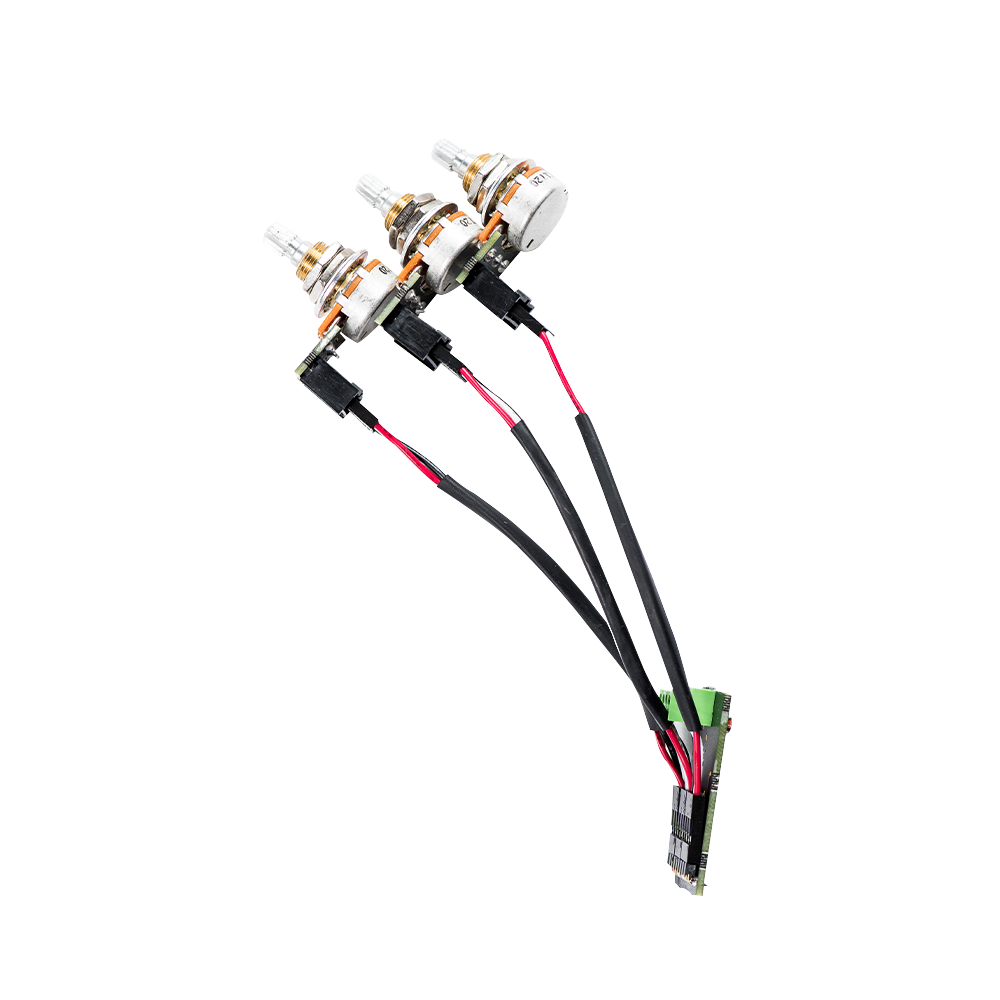

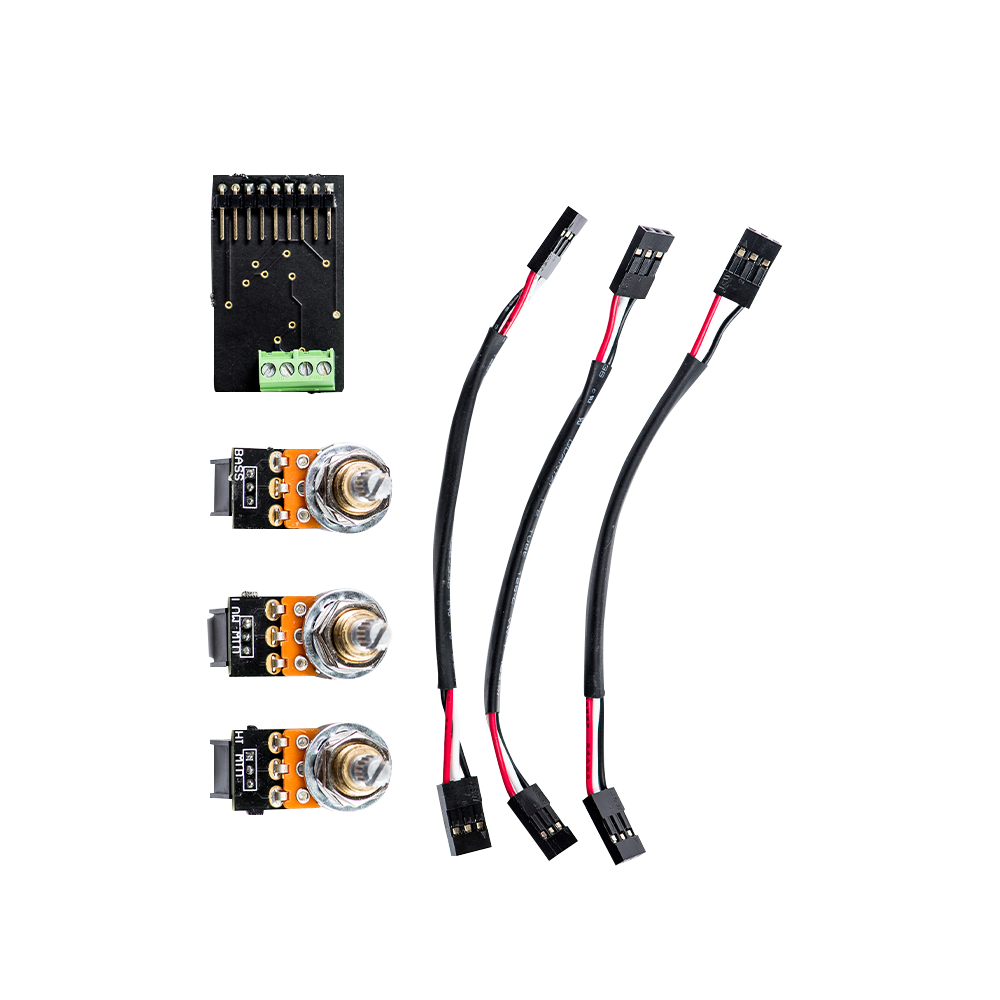

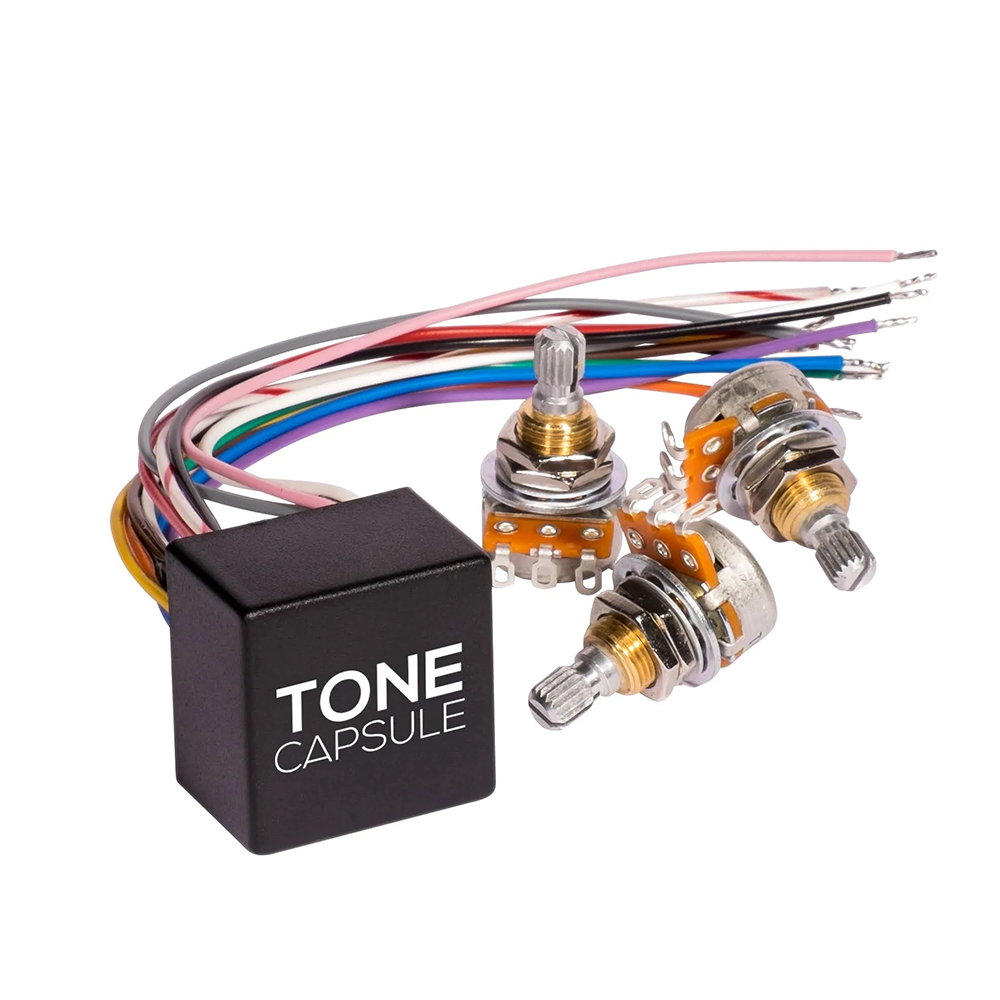

B2M2 Tone Capsule

B2M2 Tone Capsule

Expand the sonic range of your electric bass guitar, with the Darkglass Tone Capsule bass preamp system. Instead of a typical bass/mid/treble EQ configuration, the Tone Capsule system offers bass/mid/high-mid tone shaping, each with a +/-12dB range. The bass control is centered at 70Hz for low-end power, while the mid control centers at 500Hz for midrange growl and punch. The high-mid control is centered at 2.8kHz, allowing you to enhance presence and articulation without adding noise or unwanted highs. Bassists at Sweetwater agree, the Darkglass Tone Capsule gives you powerful tone-shaping capabilities in a convenient form factor.



View full details

Bass-Mid-Mid

The Tone Capsule is a new, unusual take on onboard preamplifiers. It’s designed to respect your instrument’s natural character while expanding exponentially the tonal possibilities. The Tone Capsule is unique in the way that it doesn’t have a Treble control.

Video thumbnail

Controls

  • Bass

    +-12dB @70Hz (potentiometer included).

  • Technical Specifications

    Input Impedance: 500k
    Output Impedance: 1k
    Current Consumption: ~2.4mA

  • Dimensions

    Width: 42 mm / 1,65″
    Length: 25 mm / 1″
    Height: 12,5 mm / 0,5″
    Cable length: ~10cm / 4″
    Pots: 50 KB

  • Mids

    +-12dB @500Hz (potentiometer included).

  • 9V-18V operation

    The Tone Capsule can function with either one or two batteries in series for 9V or 18V operation respectively (battery clips not included).

  • Hi Mids

    +-12dB 2.8kHz (potentiometer included).
